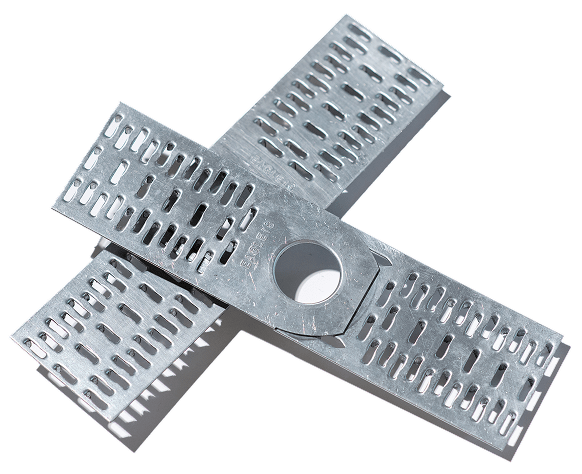

Hinge connector plates

Hinge plates are used on the top chord of a truss, allowing the chord to be folded down for transportation and raised on site without losing alignment and plane. Eagle Metal hinge plates benefit both the manufacturer and the framer as they eliminate the need for piggyback trusses.

Order Online


  • Accepted by all major building code
  • Meet and exceed the stringent ANSI/TPI-1 requirements (ASTMA 653A)
  • Are produced from laboratory certified structural steel
  • Are manufactured under strict, third party quality control measures

Technical Specifications

Technical Specifications

Eagle Plate 18

  • Gauge Specs


  • Grade Specs


  • Nail Space

    1/8 In (3.2 MM)


  • 18 Gauge steel
  • Easy to press
  • Eliminate piggyback trusses
hinge connector products

How to place your order

  • 01

    ONLINE 24/7

    All Eagle customers have access to our dedicated customer portal. Access Customer Website or Call to Set up an Account

  • 02

    By fax

    You may also place a plate order with us via fax form. 903.887.2239

  • 03

    give us a call

    We accept orders by phone during normal office hours. Call Toll Free 800.521.3245
